Push-Push Pot with Solder Terminal
VPP3
Most standard push-push pot with solder terminals
same configulation as regular push-pull pots
Switch type: D.P.D.T

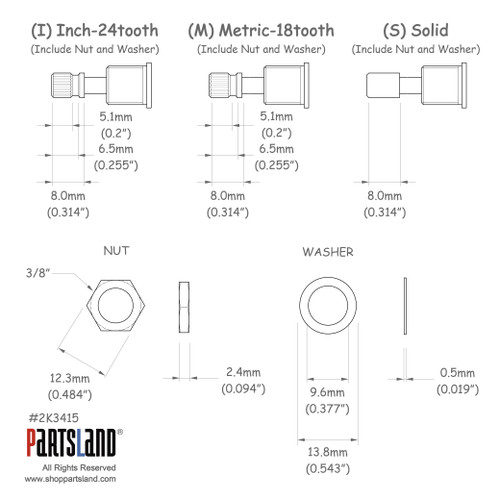

Shaft : solid or knurl
Nut diameter : 3/8"

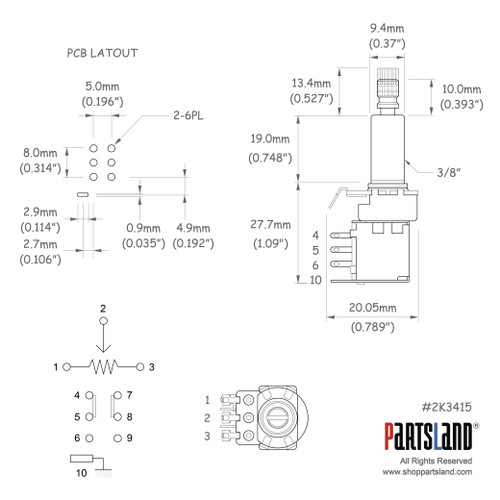

Button to before bushing Height : (27.8m/m)
2 nuts & 1 washer
Shorting type
Available knurl type
Approximate weight : 15g
Minimum order quantity : 100 pcs
Assy No.2K3415

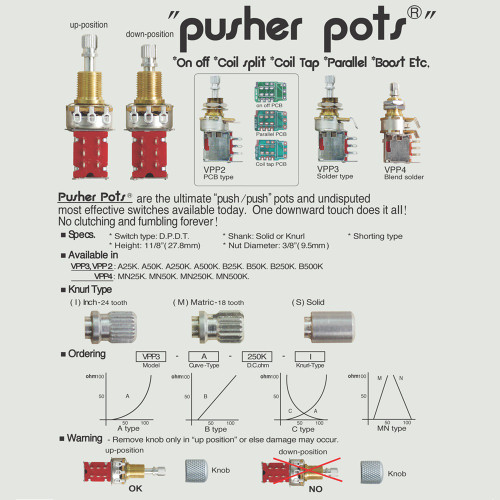

* WARNING:
Do NOT pull the knob upward while the push-push pot is in the down position.
This may result in serious functional damage.
