Flat Bottom Humbucker Mounting Ring / MT10

MT10

Flat and Straight Plastic Mounting Ring Neck BLK

Dimension : US size
3.492" x 1.752" x 0.098 / 0.098"
88.7 mm x 44.5 mm
Surface : Gross
Bottom shape : Flat
Materials : ABS and PC only Black color

MT10F - for Front pickup

88.7 mm x 44.5 mm x 2.5/2.5 mm
Assy No. 980178

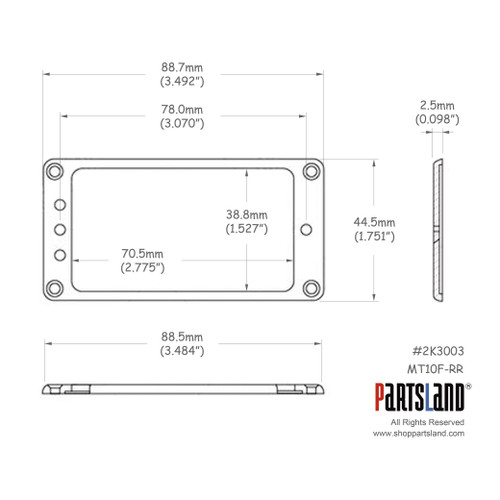

MT10F-RR - 2 more extra adjust holes

88.7 mm x 44.5 mm x 2.5/2.5 mm
Assy No. 2K3003

MT10R - for rear pickup

88.7 mm x 44.5 mm x 5.0/5.0 mm
Assy No. 980177
